★ Monitored parameters: Electrocardiogram (ECG), Respiration (RESP), Non Invasive Blood Pressure (NIBP), Blood Oxygen Saturation (SpO2), Pulse Rate (PR),

 Dual Body Temperature (TEMP), supporting more than 12 measurement parameters (including basic 6 parameters, IBP, EtCO2) to meet the needs of continuous

clinical updates and upgrades, suitable for clinical applications such as ICU/CCU, operating room, anesthesiology department, postoperative recovery room, etc

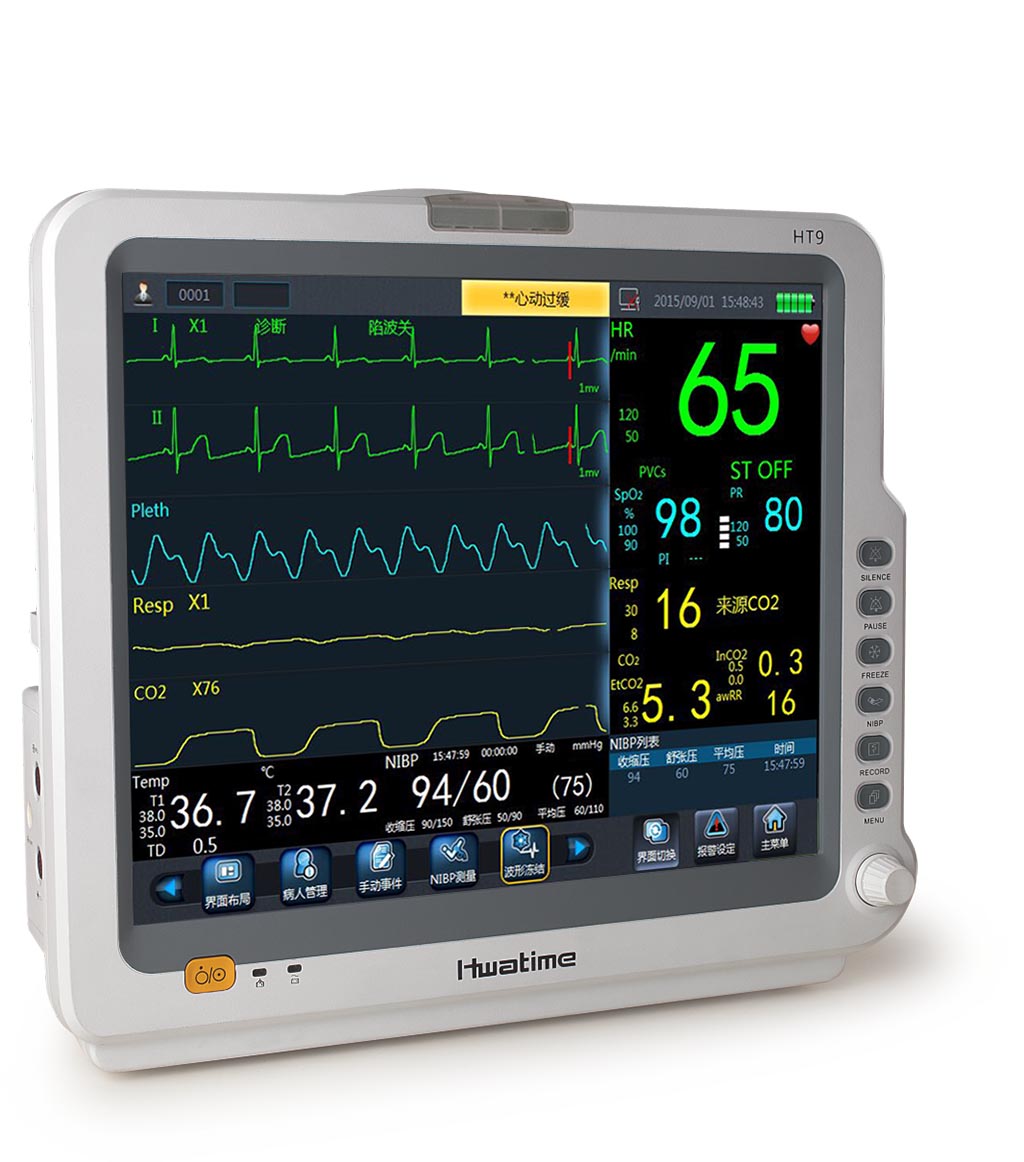

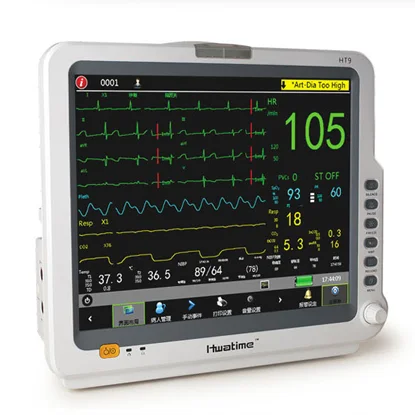

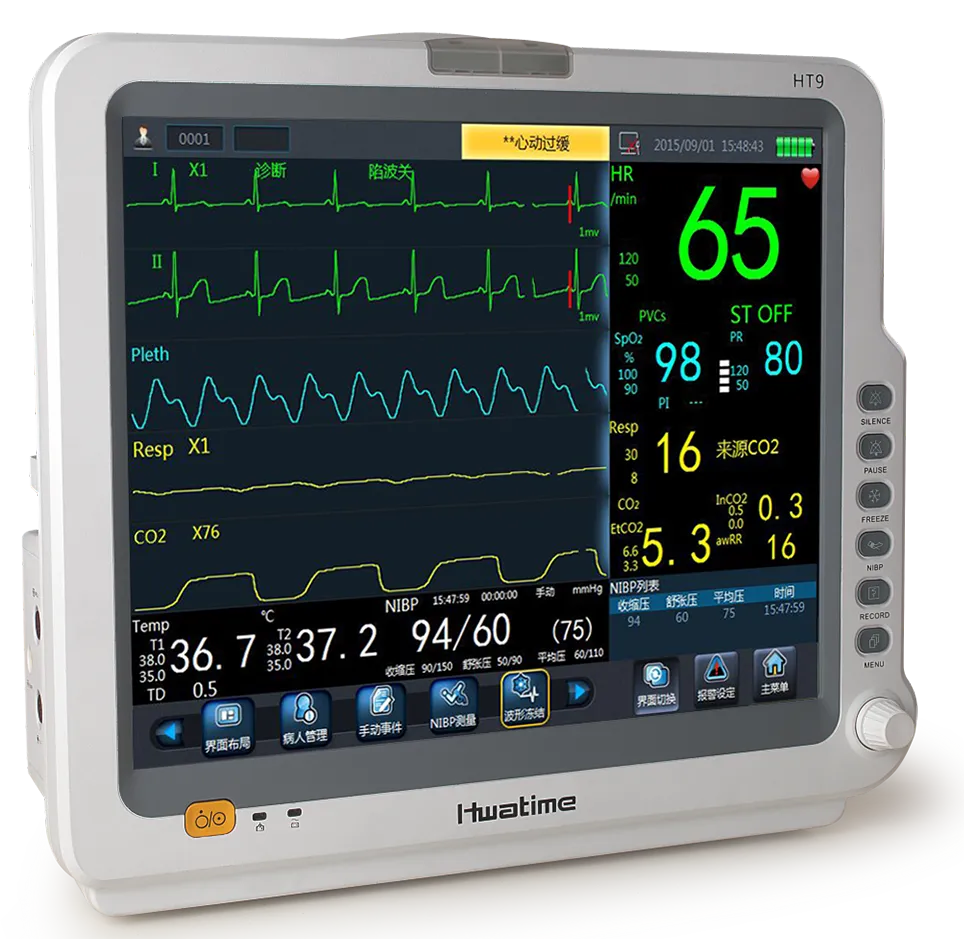

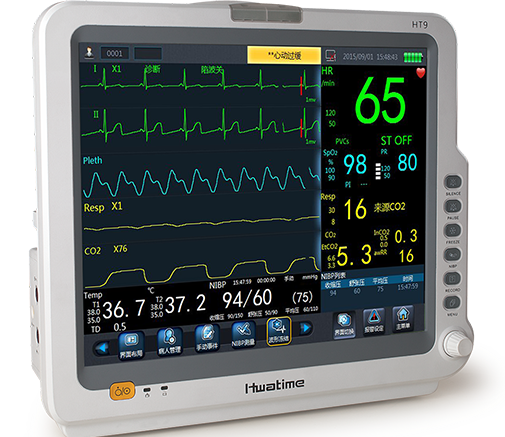

17 inch color LED display with a resolution of 800 × 600, operated by rotating the mouse, and optional touch screen. Host, monitor, recorder, integrated design,

 intuitive information display, convenient operation

Single parameter measurement module and composite parameter measurement module can be combined arbitrarily

★ The host integrates 1 single module and 1 dual module slot, supports synchronous testing of more than 10 parameters, and can be combined with any single

 parameter measurement module or composite parameter measurement module

Flexible and diverse input functions

Powerful information processing capabilities

Optional wired function

Supports SD card

8 USB ports, supporting peripherals such as keyboard and mouse

Optional built-in recorder that can print real-time data waveforms

★ Multi screen, multi interface display, VGA output, signal analog output with other instruments

Rich analysis and calculation software, 13 types of arrhythmia analysis, 6-channel ECG display on the same screen, more intuitive judgment of patient's cardiac

activity, convenient for clinical control of anesthesia drug dosage

Blood oxygen adopts a new technology to ensure measurement accuracy, and is equally outstanding at 0.3 low perfusion, making it more accurate for measuring

weak perfusion and finger tremors

★ Unique respiratory measurement technology, real-time monitoring of patients' respiratory movements, intelligent filtering design to effectively eliminate

 external interference, always able to accurately measure patients' respiratory parameters

Trend coexistence interface, convenient for observing the trends of various parameters

★ Respiratory oxygenation chart interface, with centralized display of specialized parameters for more intuitive display

Upgraded platform for the future, capable of connecting to central monitoring

Optional built-in printer that can print real-time data waveforms

★ Dual purpose AC and DC power supply, with a usage time of up to 2.5 hours; Independent development and design of batteries; Adopting imported original

Samsung cell ICR18650 Japanese Seiko protection solution; Super large capacity, standard 2600 mAh

★ 200 hour trend display, saved in case of power failure

Built in networking function, can be connected to the central monitoring system to realize the central monitoring system

Adopting fully isolated floating ground, ECG anti defibrillation protection, anti high-frequency electric knife interference, anti electromyography, and digital filtering;

·17 inch bright color LED display screen;

·Host, monitor, parameter broadcast box, recorder, integrated design, intuitive information display, convenient operation;

·Support clear output, VGA output, BNC interface and other instruments for signal analog output;

·Support various input settings such as touch screen, buttons, encoder, keyboard, and mouse, as well as Chinese input operations;

·Single parameter measurement horizontal block and composite parameter measurement module can be combined arbitrarily;

·The host integrates 2 single module slots and supports synchronous testing of 8 parameters;

·Rich analysis and calculation software;

·13 types of arrhythmia analysis, displayed on the same screen with seven channel electrocardiogram waveform, providing a more intuitive assessment of the

 patient's cardiac activity;

·Analysis of 15 drug concentrations to facilitate clinical mastery of anesthetic agents;

·Support Masimo blood oxygen.
